●Intel 945GSE + ICH7M @ 11.8W
●18/24-bit dual channel LVDS
●1 x DDR2 400/533 SO-DIMM slot (up to 2 GB)
●1 x Realtek RTL8111DL PCI-E Gigabit Ethernet
●Support 1x COM, 3x USB, 2x SATA II, 2x IEEE1394a

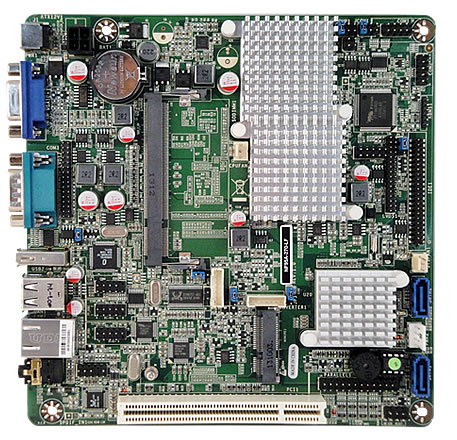

Jetway NF95A Mini-ITX Motherboard | |
Processor | 1st Generation Intel® Atom N270 @ 2.5W (512K Cache, 1.60 GHz, 533 MHz FSB) |
Chipset | Intel 945GSE + ICH7M @ 11.8W |
Memory | 1 x DDR2 400/533 SO-DIMM slot (up to 2 GB) |
Graphics | Intel GMA950 Integrated Graphics |
Audio | Realtek ALC662 5.1 Channel Audio |
LAN | 1 x Realtek RTL8111DL PCI-E Gigabit Ethernet |
Storage | 2 x SATA2 3Gb/s ports 1 x PATA IDE port (44-pin mobile header) *ATA-66 and ATA-100 are faster timings and require a specialized cable to reduce reflections, noise, and inductive coupling. |
Super IO | FINTEK F71869E |
