• Socket LGA1150 for Intel^® Core i7 / i5 / i3 / Celeron^® (Haswell)
• Intel^® Q87 Chipset
• Integrated Intel^® HD Graphics Built-in Visuals
• Supports DDR3 1600MHz, 4 x Long-DIMM, up to 32GB system memory
• 2 x COM (RS-232/422/485), 4 x COM (RS-232)
• 1 x D-Sub, 1 x HDMI, 1 x DisplayPort
• 4 x USB 3.0, 10 x USB 2.0, 5 x SATA3
• 4 x PCI, 1 x mSATA, 3 x PCIe (x16/x4/x1), 1 x CFast Card Socket (option)
• Gigabit LAN : 1 x Intel^® I217LM (with v-Pro support), 1 x Intel^® I210
• 1 x TPM Header

Form Factor

• Dimensions
  - ATX (9.6-in x 12-in)

Processor System

• CPU
  - Socket LGA1150 for Intel^® Core i7 / i5 / i3 / Celeron^® (Haswell)
• Core Number
  - (By CPU, Max 4)
• Max Speed
  - (By CPU)
• L3 Cache
  - (By CPU)
• Chipset
  - Q87
• BIOS
  - UEFI

Expansion Slot

• PCIe
  - 1 (x16) +1 (x4) + 1 (x1)
• PCI
  - 4
• Mini-PCIe
  - 0
• mSATA
  - 1
• CFast Card Socket
  - 1 (optional)

Memory

• Technology
  - Dual Channel DDR3 1066 / 1333 / 1600 MHz SDRAM
• Max.
  - 32GB
• Socket
  - 4 x Long-DIMM

Graphics

• Controller
  - Intel^® HD Graphics (By CPU)
• VRAM
  - Shared Memory
• VGA
  - Supports max resolution up to 2048x1536
• DVI
  - No
• LVDS
  - No
• HDMI
  - Supports HDMI, max resolution up to 1920x1200
• DisplayPort
  - Supports max resolution up to 2560x1600
• MultiDisplay
  - Yes (Three Display)

Ethernet

• Ethernet
  - 10/100/1000 Mbps
• Controller
  - GbE LAN1:Intel^® I210, LAN2: Intel^® I217LM (with v-Pro support)
• Connector
  - 2 x RJ45

Storage

• Max Data Transfer Rate
  - SATA2 (3.0Gb/s), SATA3 (6.0Gb/s), Supports RAID 0/1/5/10

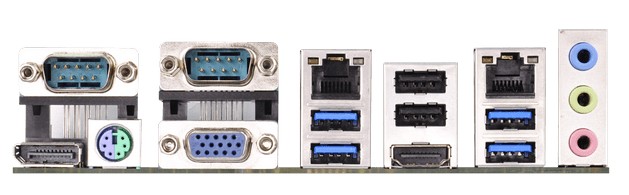

Rear I/O

• VGA
  - 1
• DVI
  - 0
• HDMI
  - 1
• DisplayPort
  - 1
• Ethernet
  - 2
• USB
  - 6 (4 x USB 3.0, 2 x USB 2.0)
• Audio
  - 3 (Mic-in, Line-out, Line-In)
• Serial
  - 2 (RS-232/422/485)
• eSATA
  - 0
• PS2
  - 1 (Combo)

Internal Connector

• USB
  - 6 (3 x USB Header 2.54mm pitch)
  - 2 Vertical Type A USB Connector
• LVDS / inverter
  - 0
• VGA
  - 0
• Serial
  - 4 (RS-232)
• SATA
  - 5 x SATA3 (6.0Gb/s), Support RAID 0/1/5/10
• mPCIe
  - 0
• Parallel
  - 1
• mSATA
  - 1
• IrDA
  - 0
• GPIO
  - 4 x GPI + 4 x GPO
• SATA PWR Output
  - 0
• Speaker Header
  - 0

Watchdog Timer

• Output
  - Output from super I/O to drag RESETCON#
• Interval
  - 256 Segments, 0, 1, 2, ...255sec

Power Requirements

• Input PWR
  - ATX PWR (8 + 24)
• Power On
  AT/ATX Supported
  - AT : Directly PWR on as power input ready
  - ATX : Press button to PWR on after power input ready

Environment

• Operating Temp
  - 0ºC ~ 60ºC
• Storage Temp
  - -40° C – 85° C
• Operating Humidity
  - 5% ~ 90%
• Storage Humidity
  - 5% ~ 90%

Others

• Ordering Information
  - IMB-781 (90-PXG170-A0UAYZ, Gift package) : IMB-781 with Socket LGA1150, Intel^® Q87 Chipset

  *The P/N is set up for gift package only. If you want to order bulk package please contact with your regional sales manager or local distributor.
• Packing List
  - 1 x Jumper setting guide
  - 1 x Driver DVD
  - 1 x IO shield
  - 2 x SATA cable
